The JY series mechanical crimping tools are heavy-duty hand-operated tools designed for crimping copper and aluminum cable lugs and splices, often featuring rotating hexagon dies. They are widely used for non-soldered, standard electrical connections.
Common JY Series Models & Ranges:
JY-0650 / JY-0650A:
Crimping Range: 6–50 mm²
Die Configuration: 6, 10, 16, 25, 35, 50 mm²
Length: Approx. 380mm - 400mm
Weight: Approx. 1.25 - 1.5 kg

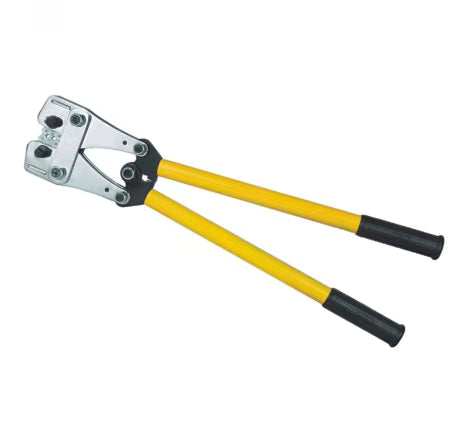

Crimping Range: 6–120 mm²
Length: Approx. 620mm - 650mm
Weight: Approx. 3.8 kg
JY-25150 / JY-35150:
Crimping Range: 25-150 mm²
Length: Approx. 650mm - 700mm
Weight: Approx. 3.9 kg
JY-70240 / JY-70240A:
Crimping Range: 70-240 mm²
Length: Approx. 670mm
Weight: Approx. 4.1 kg.
General Specifications & Features:
Crimping Type: Hexagon
Die System: Built-in revolving/rotatable dies (non-interchangeable)
Material: High-carbon steel or molded steel
Operation: Manual leverage
Features: Ergonomic handles, often with non-slip surfaces
Applications: Ideal for terminal crimping in electrical, automotive, and industrial projects.
